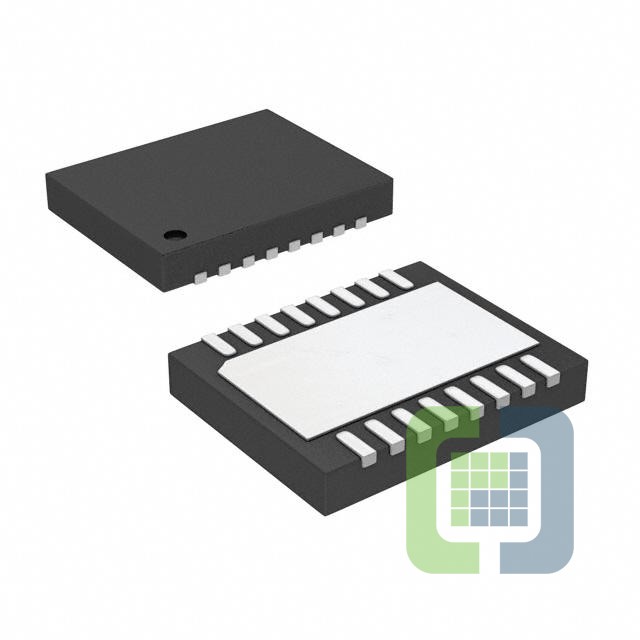

LT3506EDHD#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ 1.6A DL 16DFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LT3506EDHD#PBF Datasheet
-
ECAD Model
- Share
In Stock: 341
Can ship immediately
Pricing:
- 1$7.06
- 25$4.68768
- 100$3.87608
- 250$3.68228
- 500$3.59921
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:2
- Voltage - Input (Min):3.6V
- Voltage - Input (Max):25V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):23.25V
- Current - Output:1.6A
- Frequency - Switching:575kHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-WFDFN Exposed Pad
- Supplier Device Package:16-DFN (5x4)
