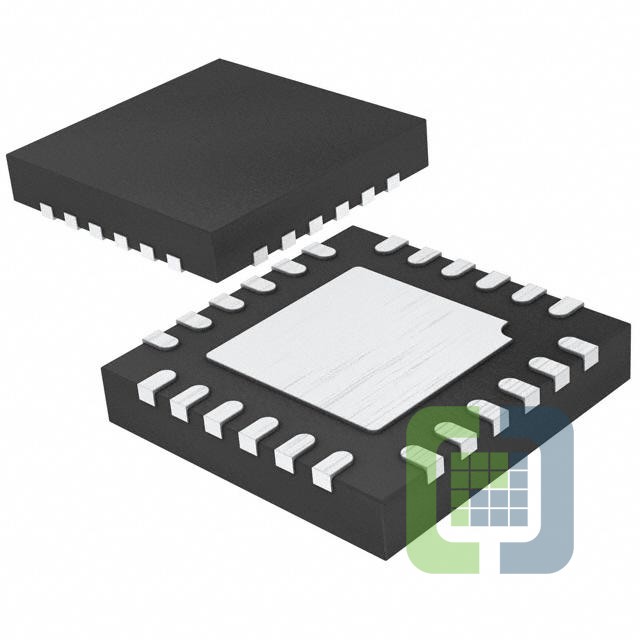

LTC3520EUF#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK BST ADJ DL 24QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LTC3520EUF#PBF Datasheet
-
ECAD Model
- Share
In Stock: 361
Can ship immediately
Pricing:
- 1$8.4
- 25$5.57863
- 100$4.61257
- 250$4.38197
- 500$4.28311
- 2,500$4.11837
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Down, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck, Buck-Boost
- Output Type:Adjustable
- Number of Outputs:2
- Voltage - Input (Min):2.2V
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):5.5V
- Current - Output:600mA, 1A
- Frequency - Switching:100kHz ~ 2MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:24-WFQFN Exposed Pad
- Supplier Device Package:24-QFN-EP (4x4)
