FAN53540UCX
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ 5A 20WLCSP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet FAN53540UCX Datasheet
-
ECAD Model
- Share
In Stock: 59,899,103
Can ship immediately
Pricing:
- 1$1.62
- 3,000$0.69863
- 6,000$0.67275
- 15,000$0.64688
Quote It
Technical Details
- Series:TinyBuck®
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):2.7V
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):4.95V
- Current - Output:5A
- Frequency - Switching:2.4MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount

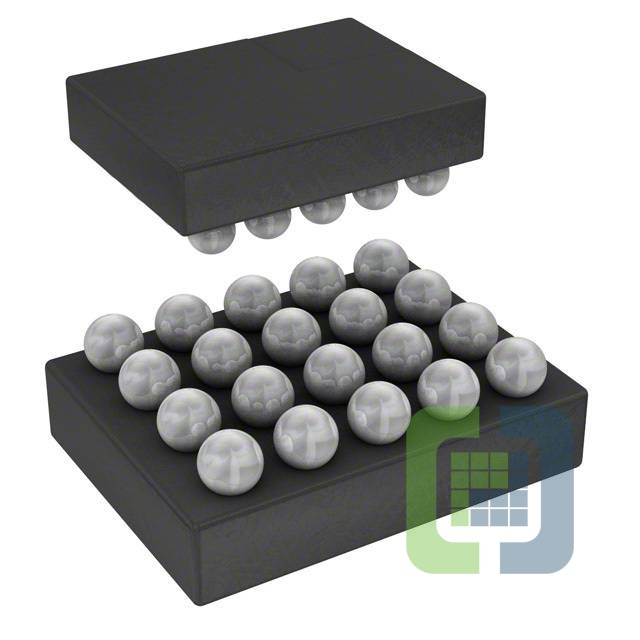

- Package / Case:20-UFBGA, WLCSP
- Supplier Device Package:20-WLCSP (1.96x1.56)
