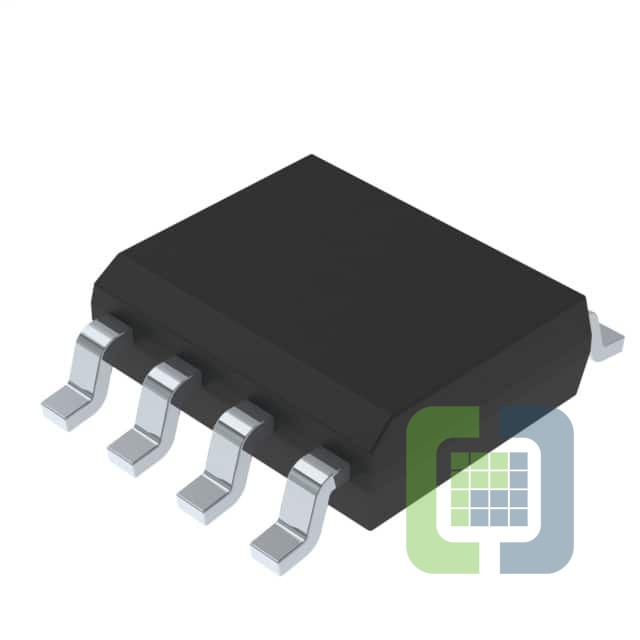

A5970D
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJUSTABLE 1A 8SO
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet A5970D Datasheet
-
ECAD Model
- Share
In Stock: 2,161
Can ship immediately
Pricing:
- 1$3.17
- 10$2.84345
- 100$2.33
- 500$1.98345
- 1,000$1.67279
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tube
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4V
- Voltage - Input (Max):36V
- Voltage - Output (Min/Fixed):1.235V
- Voltage - Output (Max):36V
- Current - Output:1A
- Frequency - Switching:250kHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:8-SO
