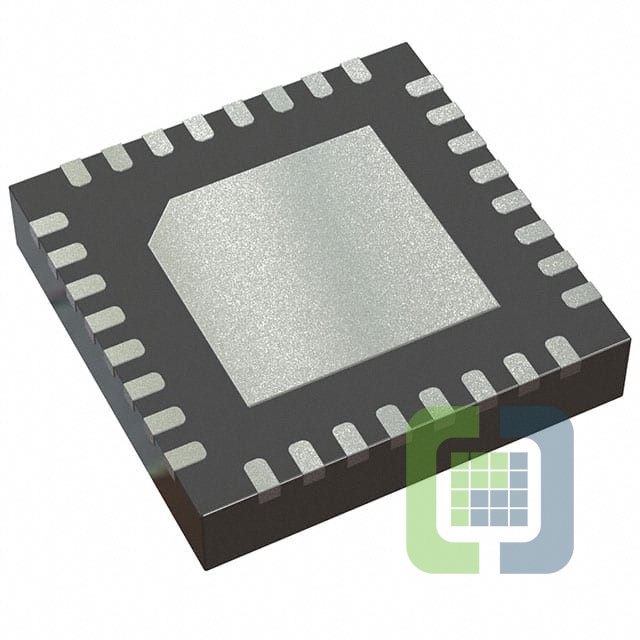

MAX5099ATJ+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ 1A/2A DL 32TQFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet MAX5099ATJ+ Datasheet
-
ECAD Model
- Share
In Stock: 2,401,180
Can ship immediately
Pricing:
- 1$5.29
- 10$5.0255
- 25$3.66286
- 50$3.47979
- 100$2.46064
- 250$2.4219
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:2
- Voltage - Input (Min):4.5V
- Voltage - Input (Max):19V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):17.1V
- Current - Output:1A, 2A
- Frequency - Switching:200kHz ~ 2.2MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:32-WFQFN Exposed Pad
- Supplier Device Package:32-TQFN (5x5)
