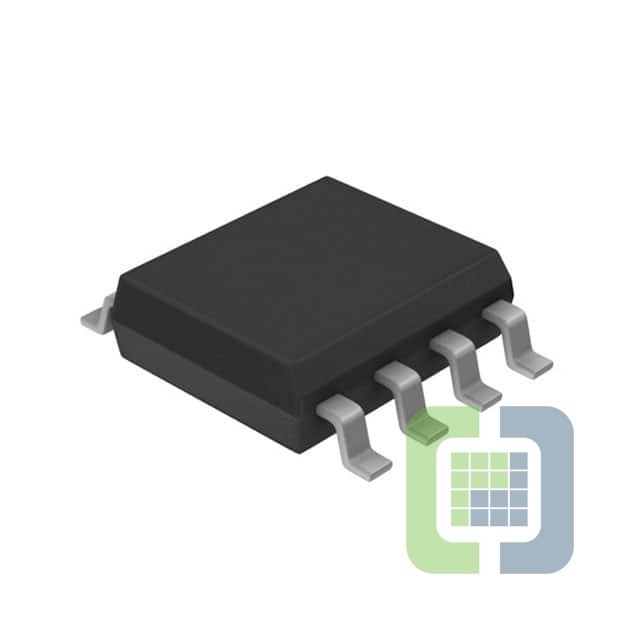

LV5807MX-TLM-H
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSTEP-DOWN SWITCHING REGULATOR
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LV5807MX-TLM-H Datasheet
-
ECAD Model
- Share
In Stock: 6,110
Can ship immediately
Pricing:
- 1$0.71
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Obsolete
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):8V
- Voltage - Input (Max):18V
- Voltage - Output (Min/Fixed):0.79V
- Voltage - Output (Max):14.4V
- Current - Output:3A
- Frequency - Switching:385kHz
- Synchronous Rectifier:Yes
- Operating Temperature:-20°C ~ 80°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-SOIC (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package:8-MFP
