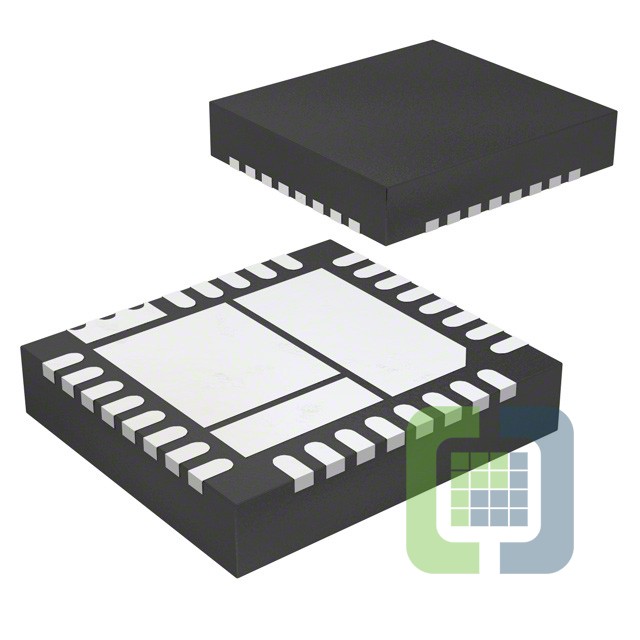

FAN23SV06MPX
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCHING REGULATOR
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet FAN23SV06MPX Datasheet
-
ECAD Model
- Share
In Stock: 564,155
Can ship immediately
Pricing:
- 1$0.86
- 3,000$0.83025
- 6,000$0.7995
Quote It
Technical Details
- Series:TinyBuck®
- Package:Bulk
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):7V
- Voltage - Input (Max):15V
- Voltage - Output (Min/Fixed):0.6V
- Voltage - Output (Max):5.5V
- Current - Output:6A
- Frequency - Switching:200kHz ~ 1.5MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:34-PowerTFQFN
- Supplier Device Package:34-PQFN (5.5x5)
