NCP3101MNTXG
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCHING REGLTR, VOLTAGE-MODE
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet NCP3101MNTXG Datasheet
-
ECAD Model
- Share
In Stock: 541
Can ship immediately
Pricing:
- 1$2.33
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Obsolete
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.5V
- Voltage - Input (Max):13.2V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):11.68V
- Current - Output:6A
- Frequency - Switching:275kHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount

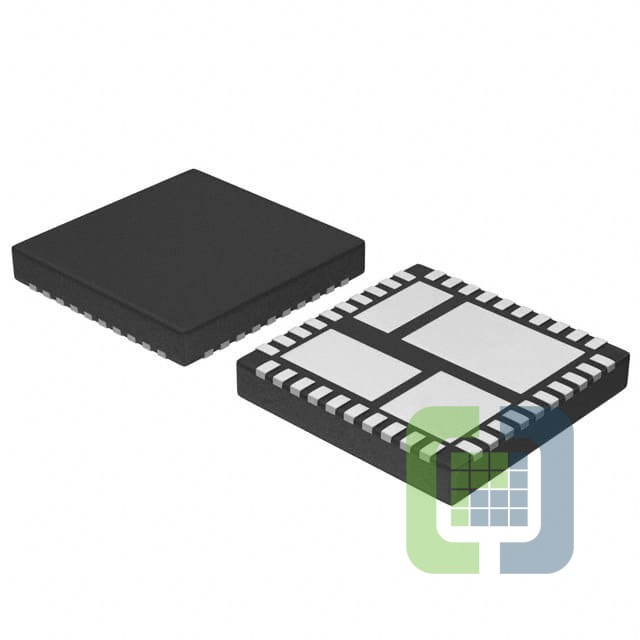

- Package / Case:40-VFQFN Exposed Pad
- Supplier Device Package:40-QFN (6x6)
