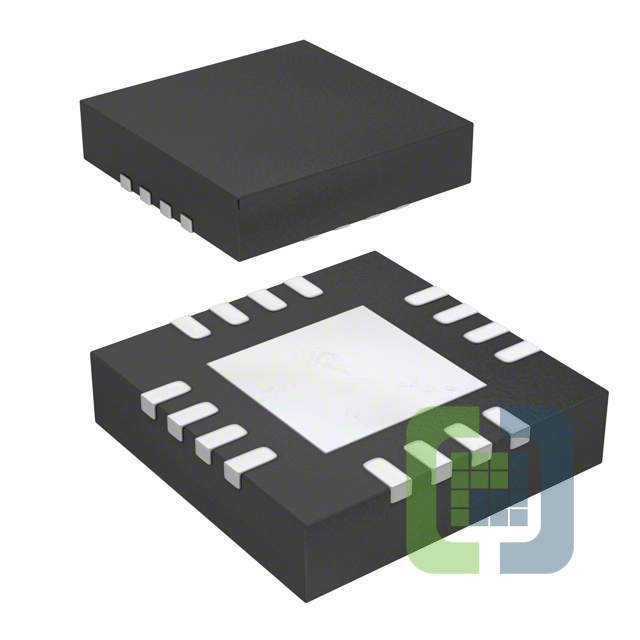

MAX5089ATE+
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- Description2A BUCK CONVERTER
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet MAX5089ATE+ Datasheet
-
ECAD Model
- Share
In Stock: 1,294
Can ship immediately
Pricing:
- 1$2.78
- 10$2.641
- 25$1.9238
- 50$1.82761
- 100$1.29397
- 250$1.2736
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.5V
- Voltage - Input (Max):23V
- Voltage - Output (Min/Fixed):0.6V
- Voltage - Output (Max):20.13V
- Current - Output:2A
- Frequency - Switching:200kHz ~ 2.2MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:16-WQFN Exposed Pad
- Supplier Device Package:16-TQFN (5x5)
