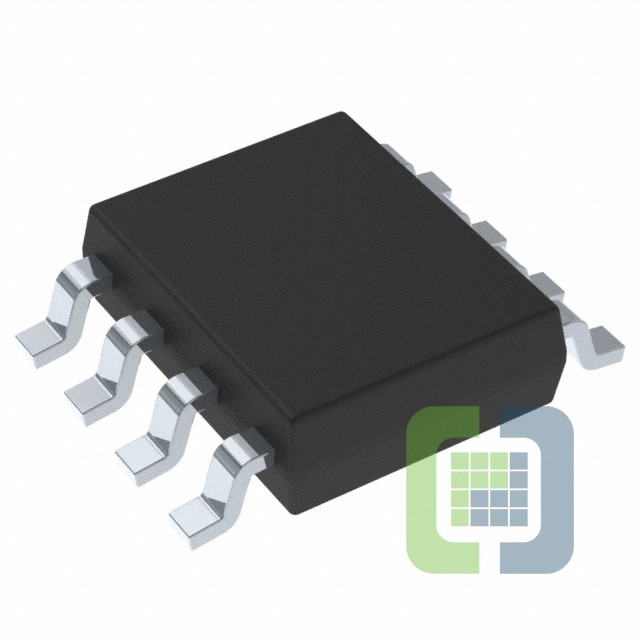

LMR14020SDDA
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJUSTABLE 2A 8SOPWR
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 28,199,210
Can ship immediately
Pricing:
- 1$2.82
- 10$2.53648
- 75$2.40032
- 150$2.08726
- 525$1.7846
- 1,050$1.51326
- 2,550$1.44021
- 5,025$1.38803
Quote It
Technical Details
- Series:SIMPLE SWITCHER®
- Package:Tube
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4V
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):28V
- Current - Output:2A
- Frequency - Switching:200kHz ~ 2.5MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:8-PowerSOIC (0.154", 3.90mm Width)
- Supplier Device Package:8-SO PowerPad
