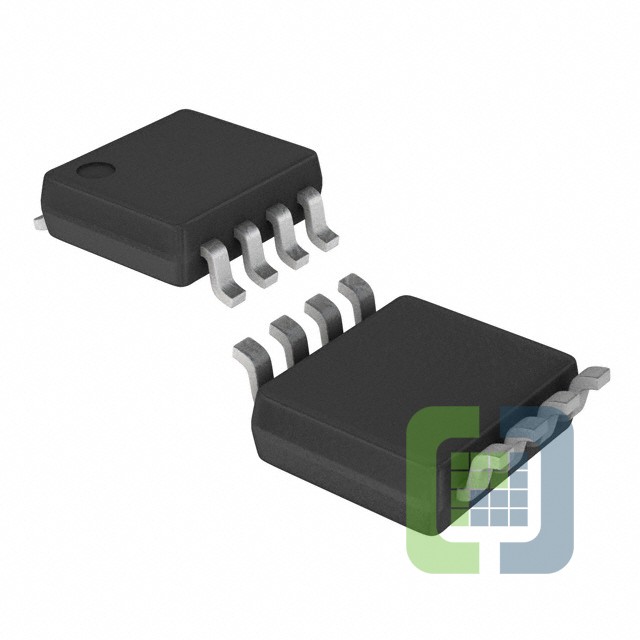

TPS560200QDGKTQ1
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ 500MA 8VSSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 332
Can ship immediately
Pricing:
- 1$1.77
- 250$1.134
- 500$0.99226
- 1,250$0.82215
Quote It
Technical Details
- Series:Automotive, AEC-Q100, SWIFT™, Eco-Mode™
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.5V
- Voltage - Input (Max):17V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):6.5V
- Current - Output:500mA
- Frequency - Switching:600kHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package:8-VSSOP
