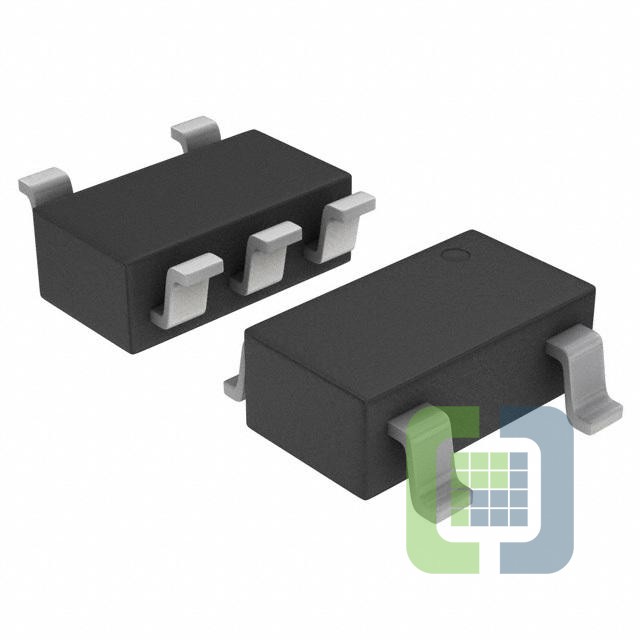

NCP1403SNT1G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK BST ADJ 50MA 5TSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet NCP1403SNT1G Datasheet
-
ECAD Model
- Share
In Stock: 122
Can ship immediately
Pricing:
- 1$0.8
- 3,000$0.29
- 6,000$0.27
- 15,000$0.26
- 30,000$0.25
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Step-Up
- Output Configuration:Positive
- Topology:Boost
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):1.3V
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):1.2V
- Voltage - Output (Max):15V
- Current - Output:50mA
- Frequency - Switching:300kHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:SOT-23-5 Thin, TSOT-23-5
- Supplier Device Package:5-TSOP
