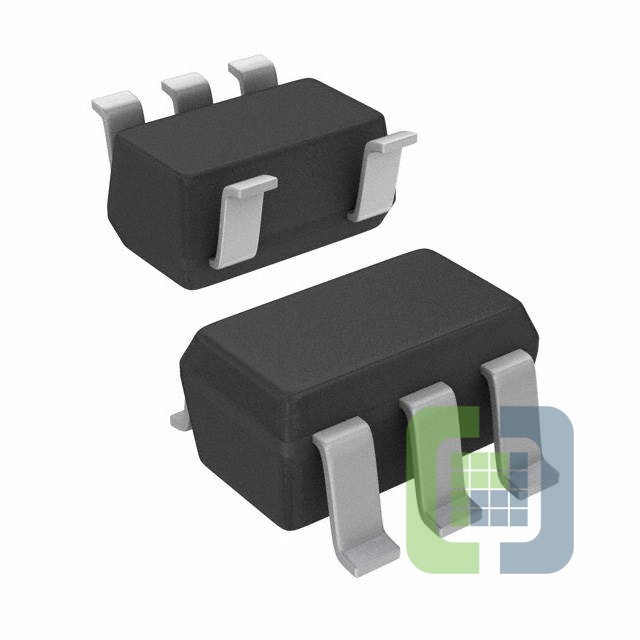

TPS60403QDBVRQ1
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CHARG PUMP INV 60MA SOT23
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 178
Can ship immediately
Pricing:
- 1$1.16
- 3,000$0.5082
- 6,000$0.48279
- 15,000$0.46464
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Ratiometric
- Output Configuration:Positive or Negative
- Topology:Charge Pump
- Output Type:Fixed
- Number of Outputs:1
- Voltage - Input (Min):1.8V
- Voltage - Input (Max):5.25V
- Voltage - Output (Min/Fixed):-Vin, 2Vin, Vin/2
- Voltage - Output (Max):-
- Current - Output:60mA
- Frequency - Switching:250kHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:SC-74A, SOT-753
- Supplier Device Package:SOT-23-5
