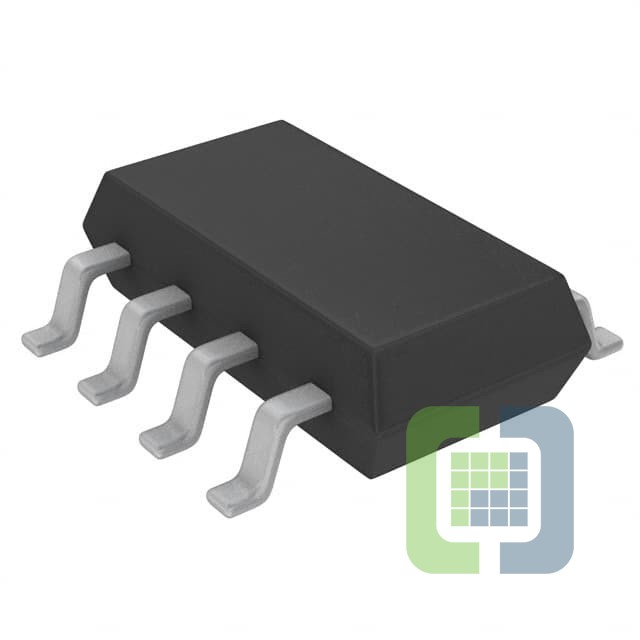

MPQ4420GJ-AEC1-Z
MPS (Monolithic Power Systems)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ 2A TSOT23-8
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet MPQ4420GJ-AEC1-Z Datasheet
-
ECAD Model
- Share
In Stock: 113
Can ship immediately
Pricing:
- 1$3.37
- 3,000$1.716
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4V
- Voltage - Input (Max):30V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):27V
- Current - Output:2A
- Frequency - Switching:410kHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:SOT-23-8 Thin, TSOT-23-8
- Supplier Device Package:TSOT-23-8
