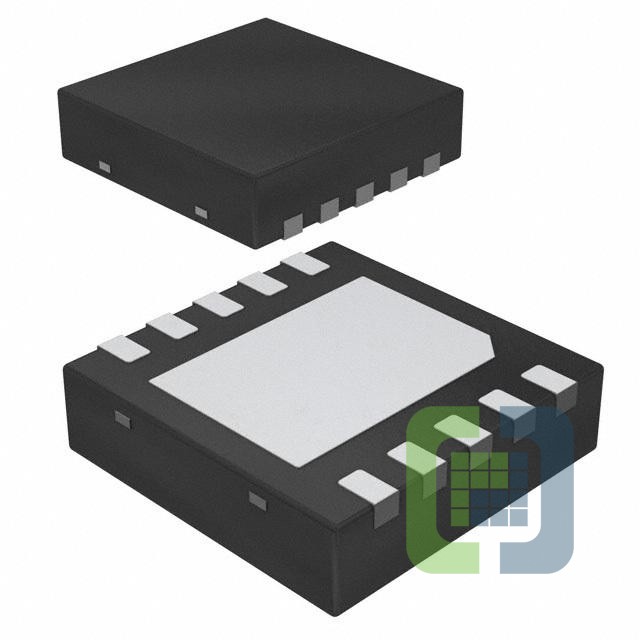

LM2772SD/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CHARGE PUMP 1.2V 10WSON
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 155
Can ship immediately
Pricing:
- 1$0.42962
- 1,000$0.42962
- 2,000$0.40098
- 5,000$0.38093
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Charge Pump
- Output Type:Fixed
- Number of Outputs:1
- Voltage - Input (Min):2.7V
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):1.2V
- Voltage - Output (Max):-
- Current - Output:150mA
- Frequency - Switching:1.15MHz
- Synchronous Rectifier:No
- Operating Temperature:-30°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:10-WFDFN Exposed Pad
- Supplier Device Package:10-WSON (3x3)
