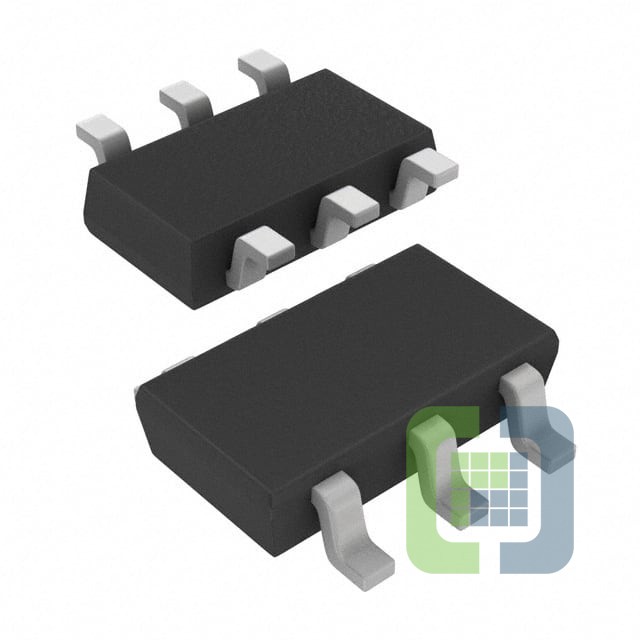

RT7294AGJ6F
Richtek
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ 2.5A TSOT23-6
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet RT7294AGJ6F Datasheet
-
ECAD Model
- Share
In Stock: 131
Can ship immediately
Pricing:
- 1$0.50901
- 3,000$0.20776
- 6,000$0.19737
- 15,000$0.18995
Quote It
Technical Details
- Series:ACOT™
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.3V
- Voltage - Input (Max):18V
- Voltage - Output (Min/Fixed):0.6V
- Voltage - Output (Max):8V
- Current - Output:2.5A
- Frequency - Switching:500kHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:SOT-23-6 Thin, TSOT-23-6
- Supplier Device Package:TSOT-23-6
