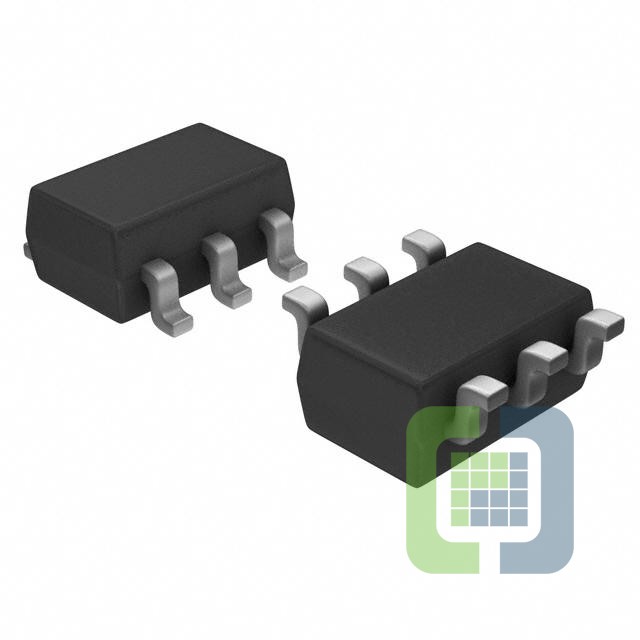

TPS560430YFDBVR
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK PWM 600MA SOT23-6
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 150
Can ship immediately
Pricing:
- 1$0.50753
- 3,000$0.50753
- 6,000$0.48873
Quote It
Technical Details
- Series:SIMPLE SWITCHER®
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:PWM
- Number of Outputs:1
- Voltage - Input (Min):4V
- Voltage - Input (Max):36V
- Voltage - Output (Min/Fixed):1V
- Voltage - Output (Max):34.2V
- Current - Output:600mA
- Frequency - Switching:2.1MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:SOT-23-6
- Supplier Device Package:SOT-23-6
