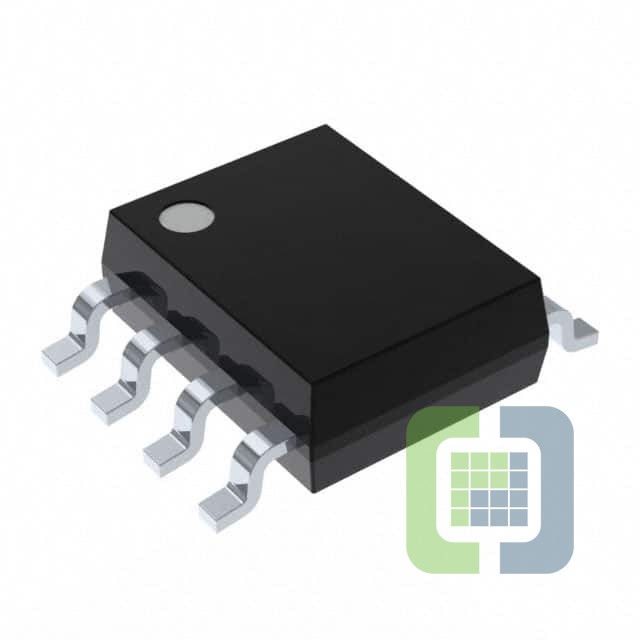

MAX860CSA+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CHARG PUMP INV 50MA 8SOIC
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet MAX860CSA+ Datasheet
-
ECAD Model
- Share
In Stock: 122
Can ship immediately
Pricing:
- 1$2.1216
- 200$2.1216
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Ratiometric
- Output Configuration:Positive or Negative
- Topology:Charge Pump
- Output Type:Fixed
- Number of Outputs:1
- Voltage - Input (Min):1.5V, 2.5V
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):-Vin, 2Vin
- Voltage - Output (Max):-
- Current - Output:50mA
- Frequency - Switching:6kHz, 50kHz, 130kHz
- Synchronous Rectifier:No
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:8-SOIC
