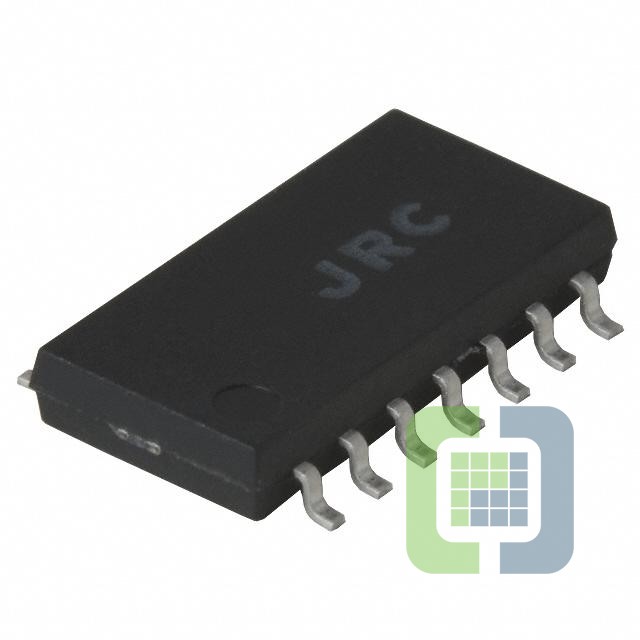

NJU7670M
New Japan Radio (NJR)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CHARGE PUMP NVIN 14DMP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet NJU7670M Datasheet
-
ECAD Model
- Share
In Stock: 151
Can ship immediately
Pricing:
- 1$2.20267
- 2,000$2.15915
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Ratiometric
- Output Configuration:Negative
- Topology:Charge Pump
- Output Type:Fixed
- Number of Outputs:1
- Voltage - Input (Min):-2.6V
- Voltage - Input (Max):-6V
- Voltage - Output (Min/Fixed):nVin
- Voltage - Output (Max):-
- Current - Output:20mA
- Frequency - Switching:2.5kHz
- Synchronous Rectifier:No
- Operating Temperature:-20°C ~ 75°C (TA)
- Mounting Type:Surface Mount
- Package / Case:14-SOIC (0.209", 5.30mm Width)
- Supplier Device Package:14-DMP
