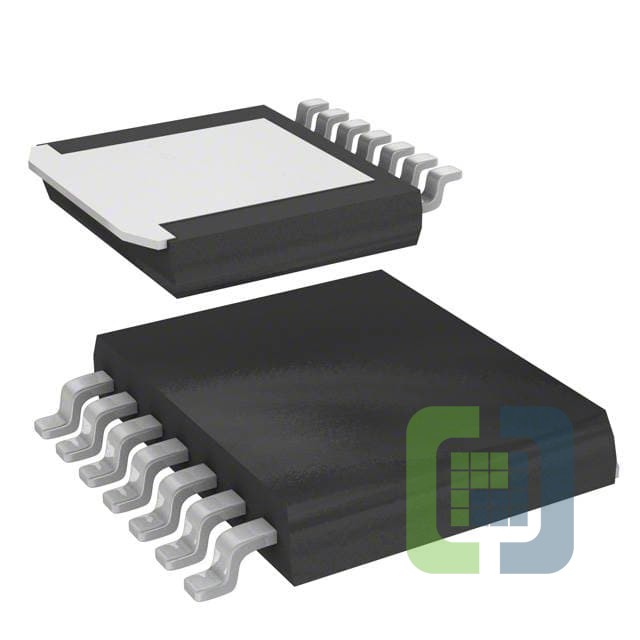

MIC4685WR
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJUSTABLE 3A SPAK-7
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet MIC4685WR Datasheet
-
ECAD Model
- Share
In Stock: 176
Can ship immediately
Pricing:
- 1$2.24
- 25$1.9152
- 100$1.76735
Quote It
Technical Details
- Series:SuperSwitcher™
- Package:Bulk
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4V
- Voltage - Input (Max):30V
- Voltage - Output (Min/Fixed):1.235V
- Voltage - Output (Max):28.2V
- Current - Output:3A
- Frequency - Switching:200kHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:SPak-7 (7 leads + Tab)
- Supplier Device Package:S-PAK-7
