MAX20040BATPA/VY+T
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG HI SPEED USB PROT TQFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 100
Can ship immediately
Pricing:
- 1$2.262
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)
- Part Status:Active
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck-Boost
- Output Type:Programmable (Fixed)
- Number of Outputs:1
- Voltage - Input (Min):2V
- Voltage - Input (Max):36V
- Voltage - Output (Min/Fixed):-
- Voltage - Output (Max):15V
- Current - Output:1.2A
- Frequency - Switching:2.2MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount, Wettable Flank

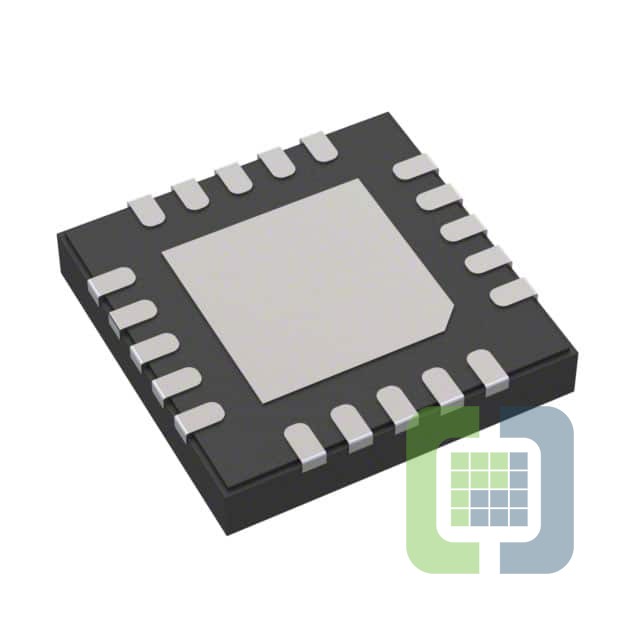

- Package / Case:20-WFQFN Exposed Pad
- Supplier Device Package:20-SWTQFN (4x4)
