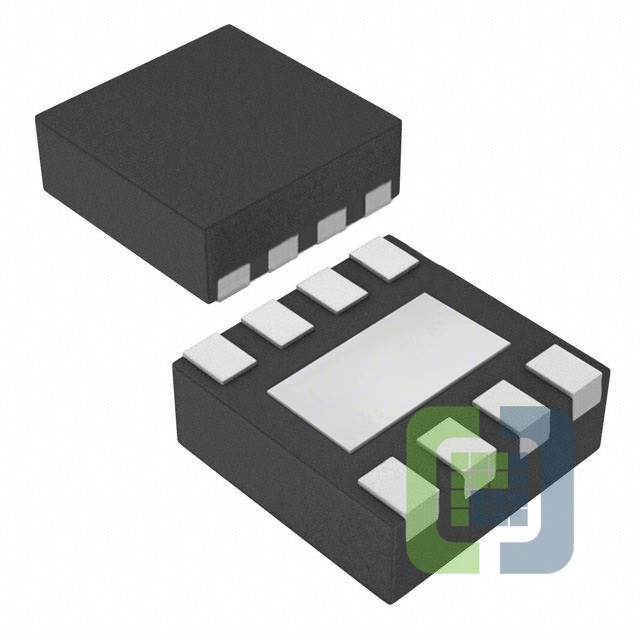

LM5001SDX/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG MULTI CONFG ADJ 8WSON
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 159
Can ship immediately
Pricing:
- 1$2.67367
- 4,500$2.62086
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Boost, Flyback, Forward Converter, SEPIC
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):3.1V
- Voltage - Input (Max):75V
- Voltage - Output (Min/Fixed):3.1V
- Voltage - Output (Max):76V (Switch)
- Current - Output:800mA (Switch)
- Frequency - Switching:50kHz ~ 1.5MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:8-WDFN Exposed Pad
- Supplier Device Package:8-WSON (4x4)
