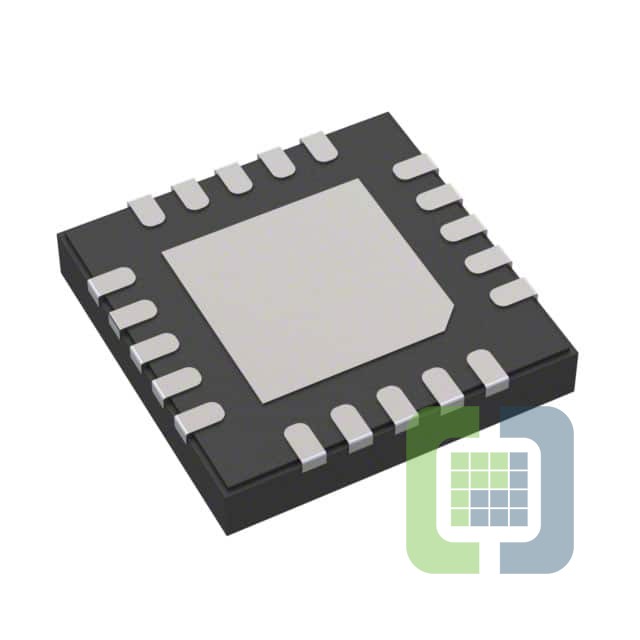

MAX20039BATPB/VY+T
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionHV BUCK BOOST FOR VO>9V & FSW 20
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 188
Can ship immediately
Pricing:
- 1$2.49
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)
- Part Status:Active
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck-Boost
- Output Type:Programmable (Fixed)
- Number of Outputs:1
- Voltage - Input (Min):2V
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):4V (5V)
- Voltage - Output (Max):15V
- Current - Output:600mA
- Frequency - Switching:200kHz ~ 2.2MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount, Wettable Flank
- Package / Case:20-WFQFN Exposed Pad
- Supplier Device Package:20-SWTQFN (4x4)
