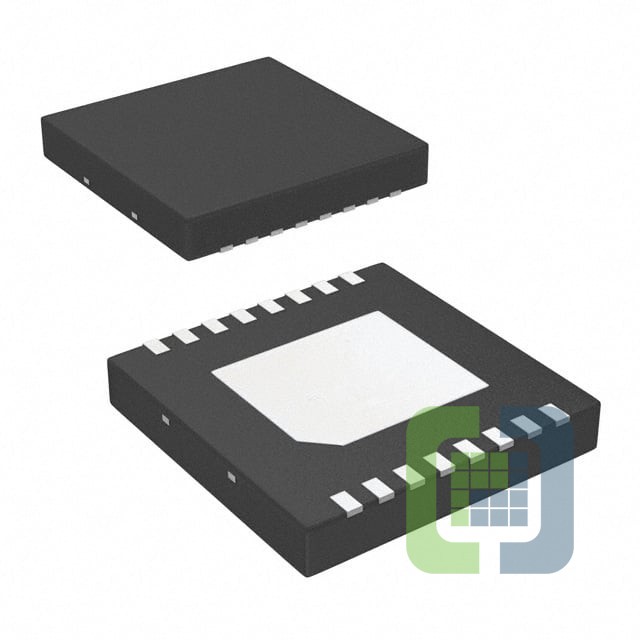

LM5000SD-6/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG MULTI CONFG ADJ 16WSON
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 159
Can ship immediately
Pricing:
- 1$2.45587
- 1,000$2.4388
- 2,000$2.31686
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Boost, Flyback, Forward Converter
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):3.1V
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):3.1V
- Voltage - Output (Max):80V (Switch)
- Current - Output:1.35A (Switch)
- Frequency - Switching:600kHz, 1.3MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:16-WFDFN Exposed Pad
- Supplier Device Package:16-WSON (5x5)
