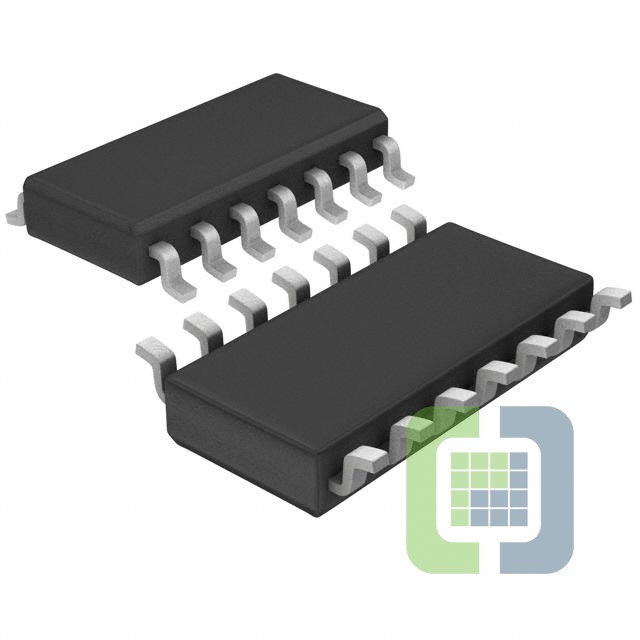

LTC1261CS#TRPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CHARGE PUMP ADJ 14SOIC
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LTC1261CS#TRPBF Datasheet
-
ECAD Model
- Share
In Stock: 108
Can ship immediately
Pricing:
- 1$3.42582
- 2,500$3.34855
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Function:Step-Up/Step-Down
- Output Configuration:Negative
- Topology:Charge Pump
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):3V
- Voltage - Input (Max):8V
- Voltage - Output (Min/Fixed):-1.25V
- Voltage - Output (Max):-8V
- Current - Output:12mA
- Frequency - Switching:550kHz
- Synchronous Rectifier:No
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount
- Package / Case:14-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:14-SOIC
