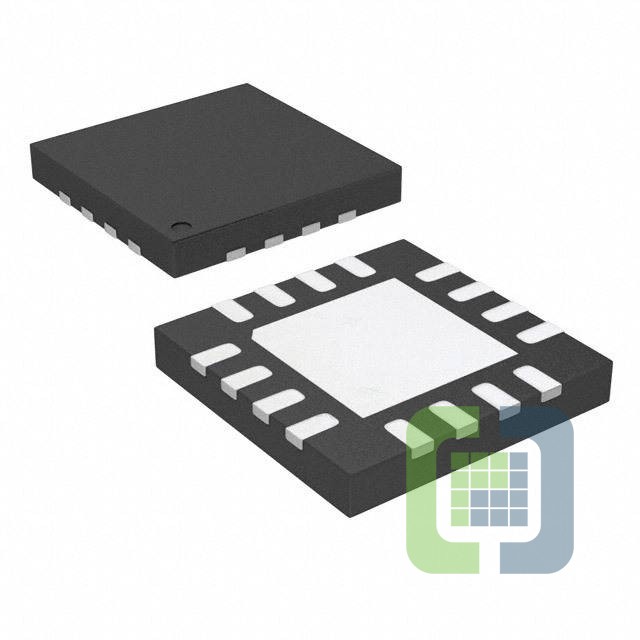

LTC3522EUD#TRPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK BST ADJ DL 16QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LTC3522EUD#TRPBF Datasheet
-
ECAD Model
- Share
In Stock: 155
Can ship immediately
Pricing:
- 1$3.645
- 2,500$3.56278
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Function:Step-Down, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck, Buck-Boost
- Output Type:Adjustable
- Number of Outputs:2
- Voltage - Input (Min):2.4V
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):0.6V
- Voltage - Output (Max):5.5V
- Current - Output:200mA, 400mA
- Frequency - Switching:1.07MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-WFQFN Exposed Pad
- Supplier Device Package:16-QFN-EP (3x3)
