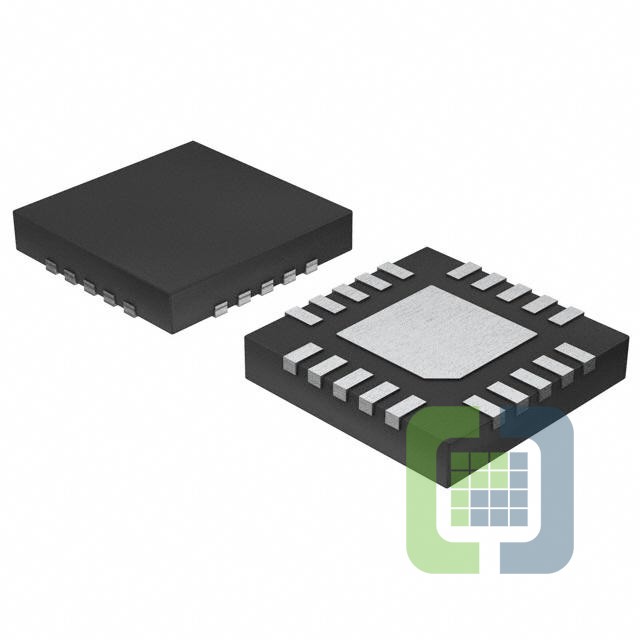

MAX17506ATP+T
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJUSTABLE 20TQFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet MAX17506ATP+T Datasheet
-
ECAD Model
- Share
In Stock: 150
Can ship immediately
Pricing:
- 1$3.822
- 2,500$3.50519
Quote It
Technical Details
- Series:Himalaya
- Package:Tape & Reel (TR)
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.5V
- Voltage - Input (Max):60V
- Voltage - Output (Min/Fixed):0.9V
- Voltage - Output (Max):54V
- Current - Output:-
- Frequency - Switching:200kHz ~ 2.2MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:20-WQFN Exposed Pad
- Supplier Device Package:20-TQFN (5x5)
