LT1534CS#TRPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG MULTI CONFG ADJ 2A 16SOIC
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LT1534CS#TRPBF Datasheet
-
ECAD Model
- Share
In Stock: 136
Can ship immediately
Pricing:
- 1$5.334
- 2,500$5.21368
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive or Negative
- Topology:Boost, Cuk, Flyback
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):2.7V
- Voltage - Input (Max):23V
- Voltage - Output (Min/Fixed):1.25V
- Voltage - Output (Max):35V (Switch)
- Current - Output:2A (Switch)
- Frequency - Switching:20kHz ~ 250kHz
- Synchronous Rectifier:No
- Operating Temperature:0°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

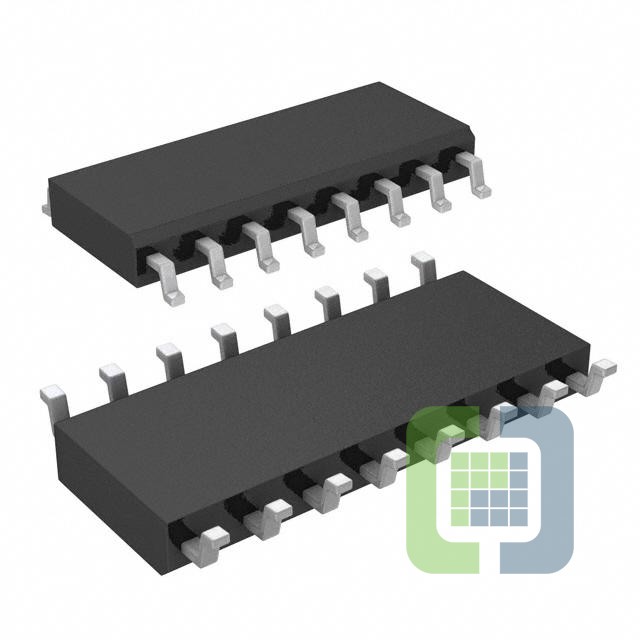

- Package / Case:16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:16-SOIC
