LTC3548AIMSE#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK BST ADJ DL 10MSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LTC3548AIMSE#PBF Datasheet
-
ECAD Model
- Share
In Stock: 103
Can ship immediately
Pricing:
- 1$5.35853
- 200$4.41291
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Down, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck, Buck-Boost
- Output Type:Adjustable
- Number of Outputs:2
- Voltage - Input (Min):2.5V
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):0.6V
- Voltage - Output (Max):5V
- Current - Output:400mA, 800mA
- Frequency - Switching:2.25MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

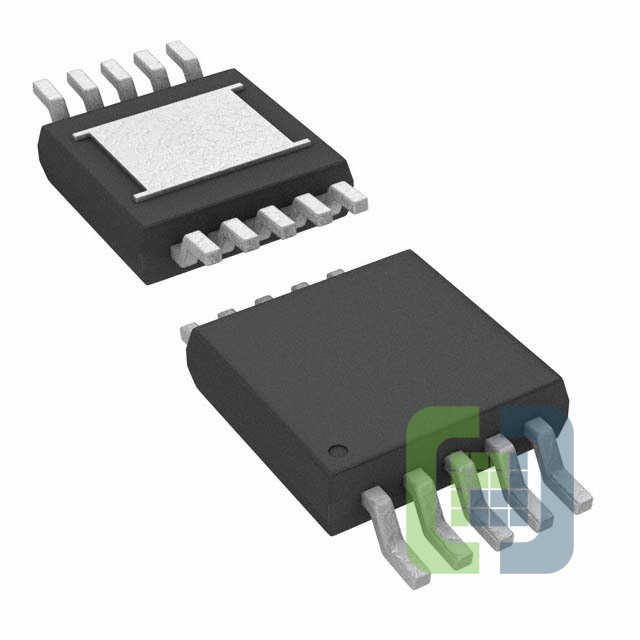

- Package / Case:10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package:10-MSOP-EP
