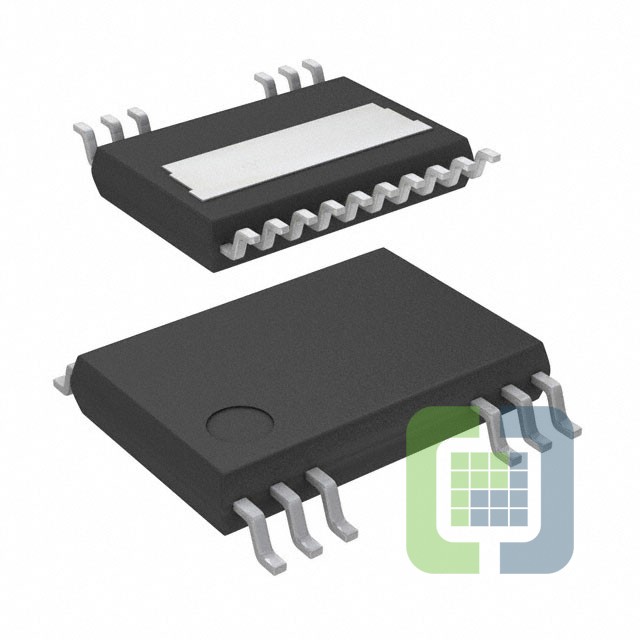

LT8315EFE#TRPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG FLYBACK 800MA 20TSSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LT8315EFE#TRPBF Datasheet
-
ECAD Model
- Share
In Stock: 167
Can ship immediately
Pricing:
- 1$5.925
- 2,500$5.79135
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Function:Step-Down, Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Flyback
- Output Type:Fixed
- Number of Outputs:1
- Voltage - Input (Min):18V
- Voltage - Input (Max):560V
- Voltage - Output (Min/Fixed):-
- Voltage - Output (Max):-
- Current - Output:800mA
- Frequency - Switching:220Hz ~ 140kHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad
- Supplier Device Package:20-TSSOP-EP
