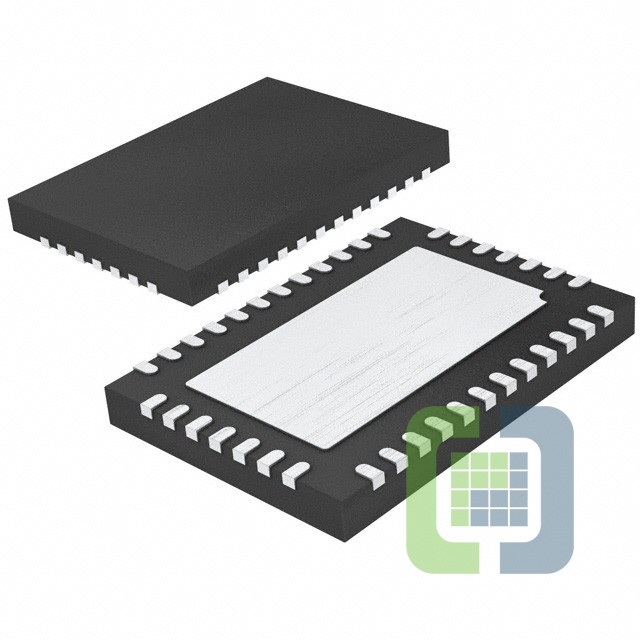

LTC3815IUFE#TRPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK PROG 6A 38QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LTC3815IUFE#TRPBF Datasheet
-
ECAD Model
- Share
In Stock: 184
Can ship immediately
Pricing:
- 1$6.972
- 2,500$6.81474
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Programmable
- Number of Outputs:1
- Voltage - Input (Min):2.25V
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):0.4V
- Voltage - Output (Max):3.96V
- Current - Output:6A
- Frequency - Switching:1MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:38-WFQFN Exposed Pad
- Supplier Device Package:38-QFN (4x6)
