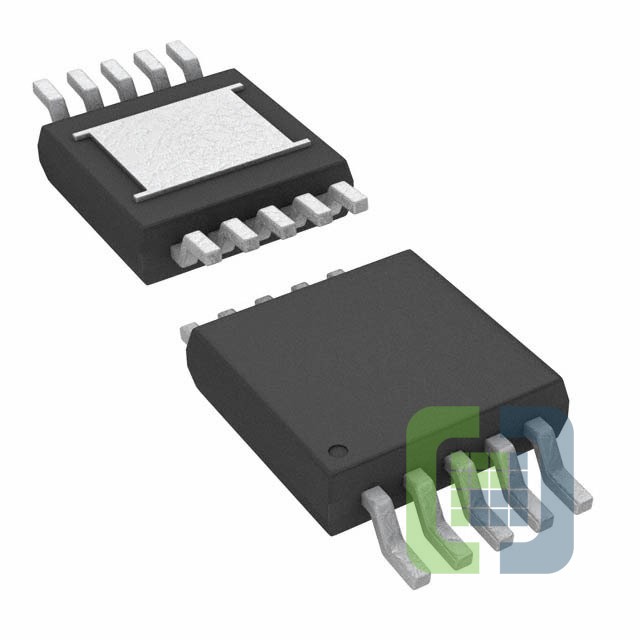

LT3680IMSE#TRPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ 3.5A 10MSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LT3680IMSE#TRPBF Datasheet
-
ECAD Model
- Share
In Stock: 111
Can ship immediately
Pricing:
- 1$7.35
- 2,500$7.18421
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):3.6V
- Voltage - Input (Max):36V
- Voltage - Output (Min/Fixed):0.79V
- Voltage - Output (Max):30V
- Current - Output:3.5A
- Frequency - Switching:230kHz ~ 2.45MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package:10-MSOP-EP
