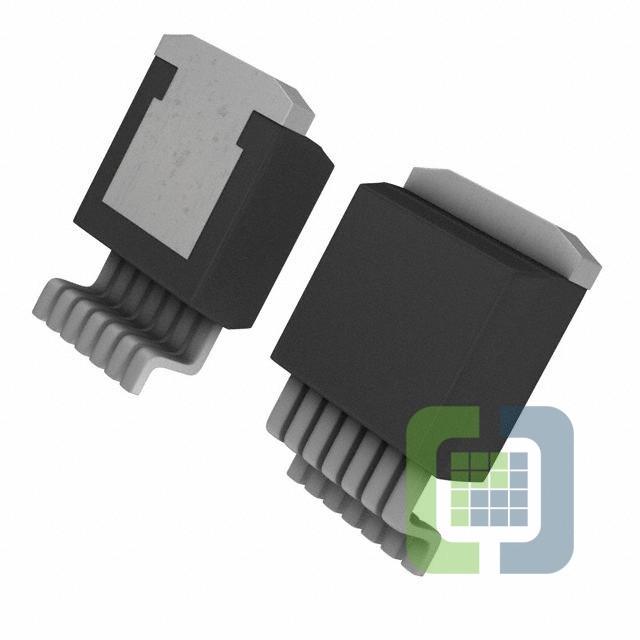

LT1506CR#TRPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ 4.5A D2PAK-7
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LT1506CR#TRPBF Datasheet
-
ECAD Model
- Share
In Stock: 106
Can ship immediately
Pricing:
- 1$7.52493
- 750$6.74649
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4V
- Voltage - Input (Max):15V
- Voltage - Output (Min/Fixed):2.42V
- Voltage - Output (Max):13.95V
- Current - Output:4.5A
- Frequency - Switching:500kHz
- Synchronous Rectifier:No
- Operating Temperature:0°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
- Supplier Device Package:D2PAK-7
