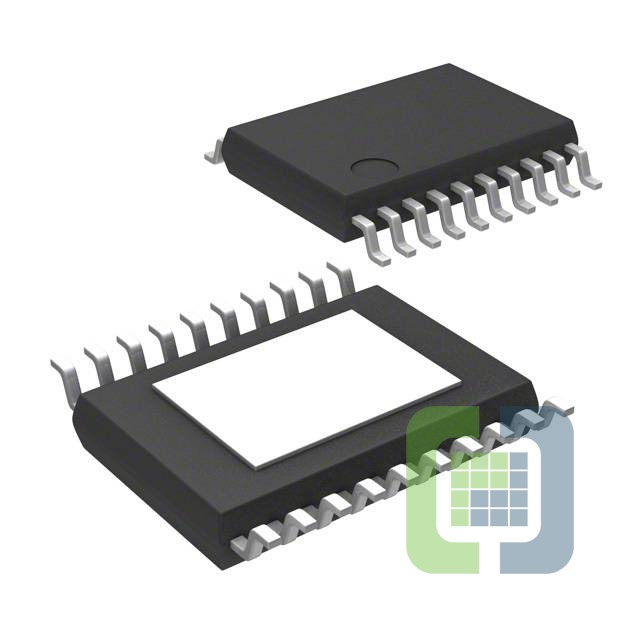

LTC3115MPFE-2#TRPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BCK BST ADJ 20TSSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LTC3115MPFE-2#TRPBF Datasheet
-
ECAD Model
- Share
In Stock: 182
Can ship immediately
Pricing:
- 1$21.994
- 2,500$21.49789
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck-Boost
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):2.2V
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):2.7V
- Voltage - Output (Max):40V
- Current - Output:800mA, 2A
- Frequency - Switching:100kHz ~ 2MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:20-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package:20-TSSOP-EP
