EL7564CMZ
Intersil (Renesas Electronics America)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJUSTABLE 4A 20SO
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet EL7564CMZ Datasheet
-
ECAD Model
- Share
In Stock: 196
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.5V
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):1V
- Voltage - Output (Max):3.8V
- Current - Output:4A
- Frequency - Switching:200kHz ~ 1MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount

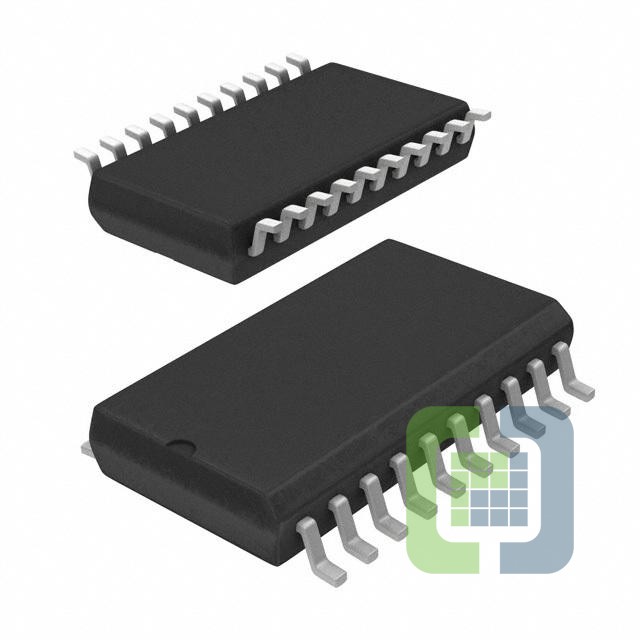

- Package / Case:20-SOIC (0.295", 7.50mm Width)
- Supplier Device Package:20-SO
