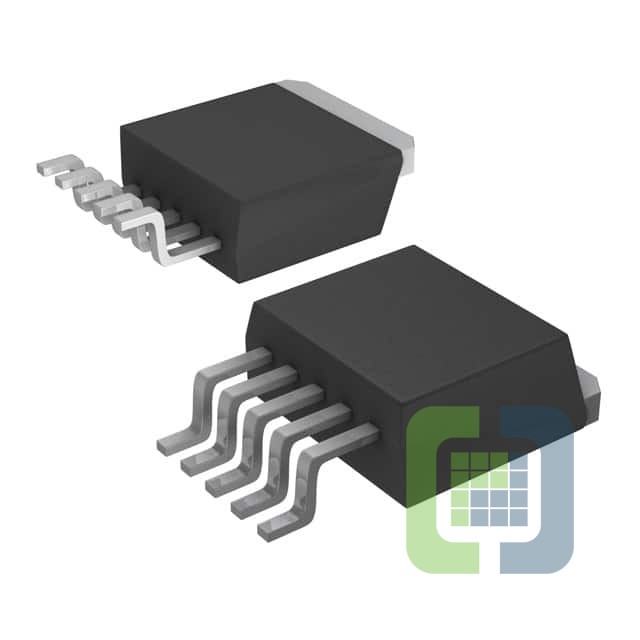

AP1501A-K5L-13
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ 5A TO263-5
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet AP1501A-K5L-13 Datasheet
-
ECAD Model
- Share
In Stock: 180
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.5V
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):1.23V
- Voltage - Output (Max):37V
- Current - Output:5A
- Frequency - Switching:150kHz
- Synchronous Rectifier:No
- Operating Temperature:-20°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
- Supplier Device Package:TO-263-5
