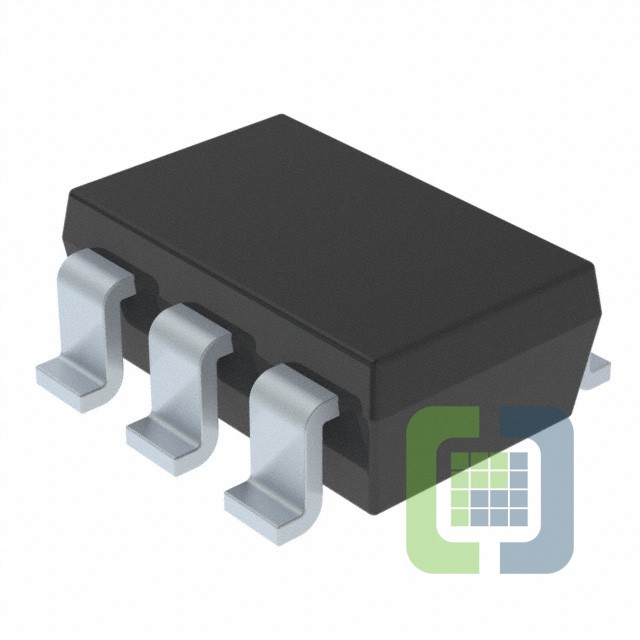

AP1603WL-7
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BST ADJ/PROG 200MA SOT26
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet AP1603WL-7 Datasheet
-
ECAD Model
- Share
In Stock: 191
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Function:Step-Up
- Output Configuration:Positive
- Topology:Boost
- Output Type:Adjustable (Programmable)
- Number of Outputs:1
- Voltage - Input (Min):1.1V
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):2V (3.3V, 5V)
- Voltage - Output (Max):5.8V (Switch)
- Current - Output:200mA (Switch)
- Frequency - Switching:150kHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:SOT-23-6
- Supplier Device Package:SOT-26
