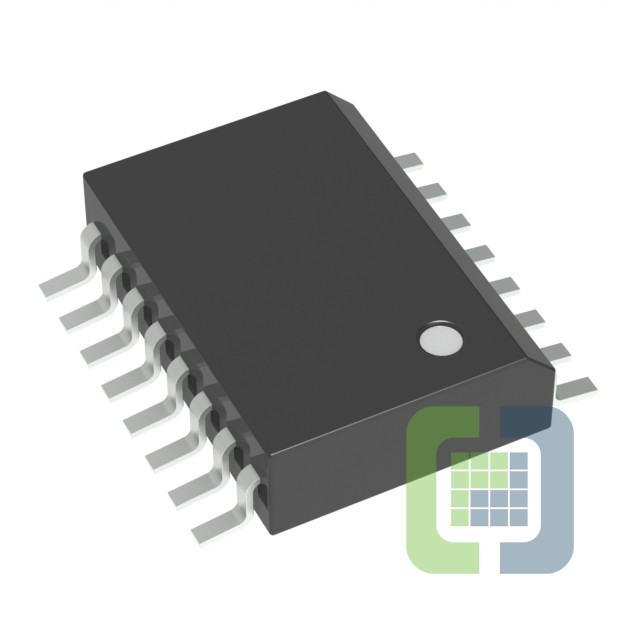

LM2574DW-ADJ
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG MULTI CONFG ADJ 16SOIC
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LM2574DW-ADJ Datasheet
-
ECAD Model
- Share
In Stock: 196
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Function:Step-Up, Step-Down, Step-Up/Step-Down
- Output Configuration:Positive or Negative
- Topology:Buck, Boost, Buck-Boost
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.75V
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):1.23V
- Voltage - Output (Max):37V
- Current - Output:500mA
- Frequency - Switching:52kHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package:16-SOIC
