NCP1406SNT1
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK BST ADJ 25MA 5TSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet NCP1406SNT1 Datasheet
-
ECAD Model
- Share
In Stock: 118
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Function:Step-Up, Step-Down
- Output Configuration:Positive or Negative
- Topology:Buck, Boost
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):1.4V
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):1.19V
- Voltage - Output (Max):25V
- Current - Output:25mA
- Frequency - Switching:1MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount

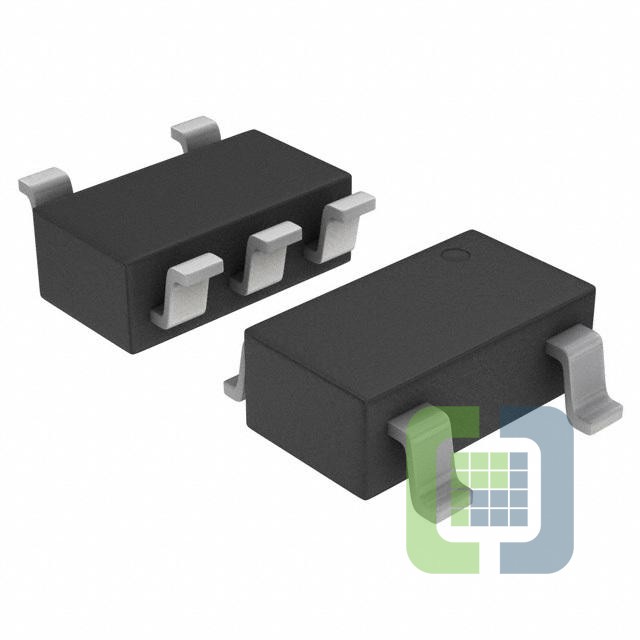

- Package / Case:SOT-23-5 Thin, TSOT-23-5
- Supplier Device Package:5-TSOP
