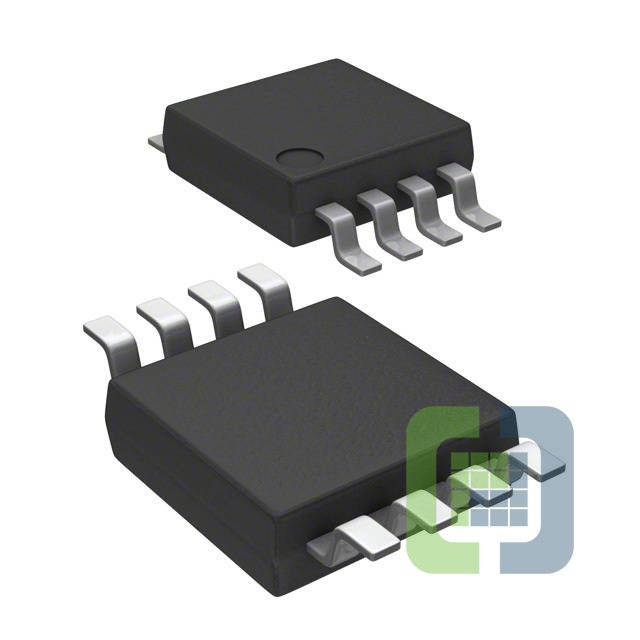

MAX684EUA+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CHARGE PUMP 5V 50MA 8UMAX
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet MAX684EUA+ Datasheet
-
ECAD Model
- Share
In Stock: 188
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Function:Step-Up
- Output Configuration:Positive
- Topology:Charge Pump
- Output Type:Fixed
- Number of Outputs:1
- Voltage - Input (Min):2.7V
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Current - Output:50mA
- Frequency - Switching:50kHz ~ 2MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package:8-uMAX
