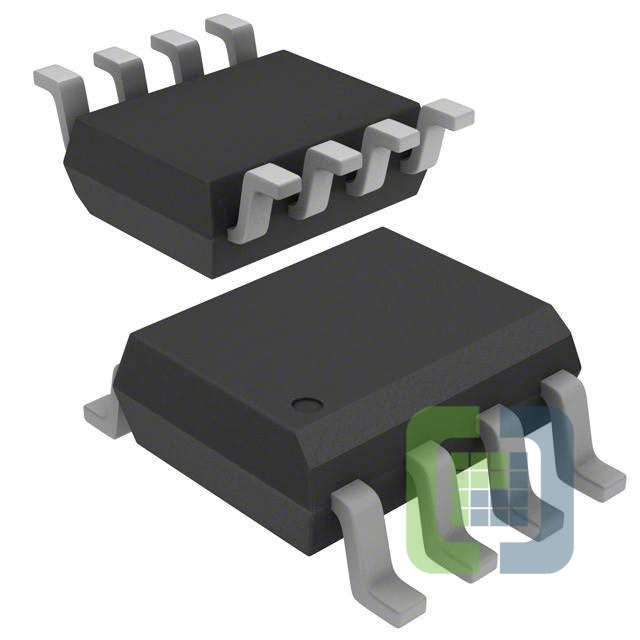

ADP3605ARZ
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CHARGE PUMP ADJ 8SOIC
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet ADP3605ARZ Datasheet
-
ECAD Model
- Share
In Stock: 166
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Up/Step-Down
- Output Configuration:Negative
- Topology:Charge Pump
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):3V
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):-3V
- Voltage - Output (Max):-12V
- Current - Output:120mA
- Frequency - Switching:250kHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:8-SOIC
