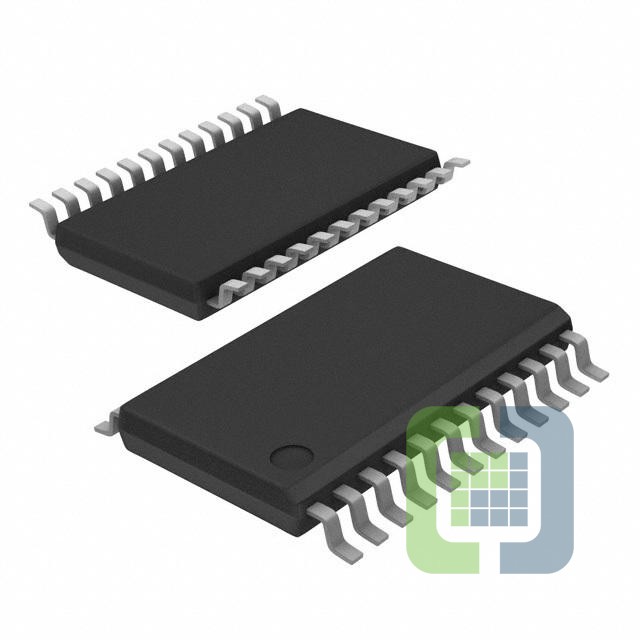

LM2716MTX/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK BST ADJ/3.3V 24TSSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 152
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Function:Step-Up, Step-Down
- Output Configuration:Positive
- Topology:Buck, Boost
- Output Type:Adjustable (Fixed)
- Number of Outputs:2
- Voltage - Input (Min):4V
- Voltage - Input (Max):20V
- Voltage - Output (Min/Fixed):4V (3.3V)
- Voltage - Output (Max):20V (Switch)
- Current - Output:3.6A (Switch), 1.8A
- Frequency - Switching:300kHz ~ 600kHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:24-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:24-TSSOP
