MAX15036ATE/V+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK BST ADJ 3A 16TQFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet MAX15036ATE/V+ Datasheet
-
ECAD Model
- Share
In Stock: 127
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tube
- Part Status:Active
- Function:Step-Up, Step-Down
- Output Configuration:Positive
- Topology:Buck, Boost
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.5V
- Voltage - Input (Max):23V
- Voltage - Output (Min/Fixed):0.6V
- Voltage - Output (Max):28V
- Current - Output:3A
- Frequency - Switching:312kHz ~ 2.1MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

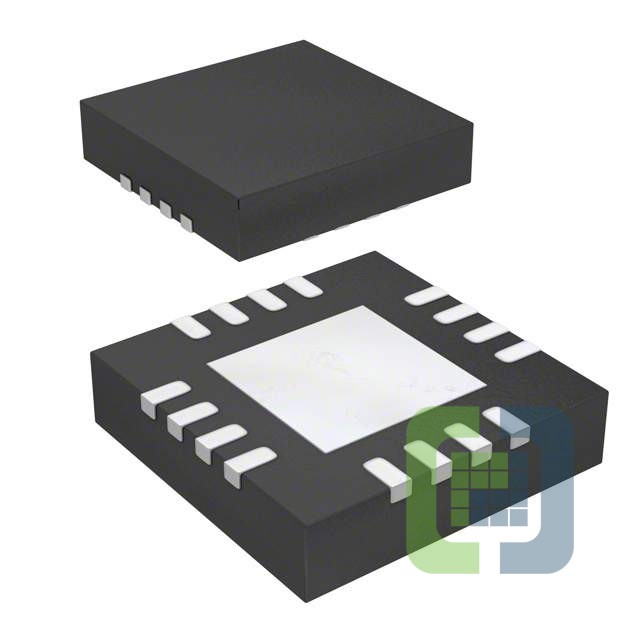

- Package / Case:16-WQFN Exposed Pad
- Supplier Device Package:16-TQFN (5x5)
