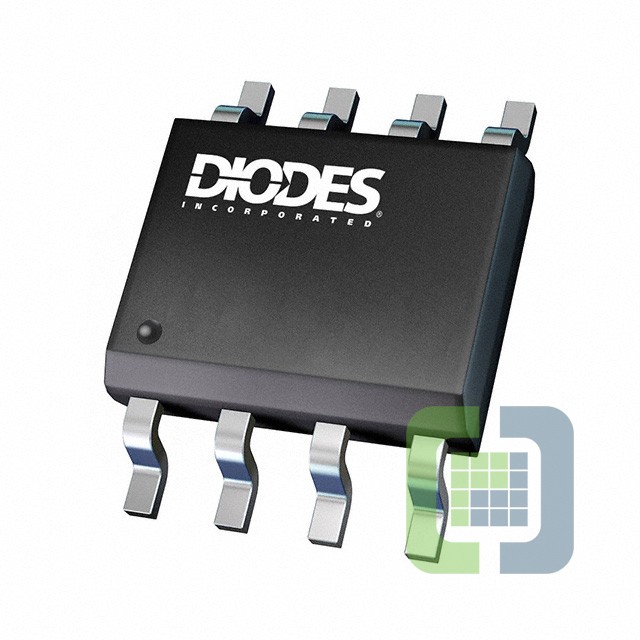

AP65503SP-13
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJUSTABLE 5A 8SO
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet AP65503SP-13 Datasheet
-
ECAD Model
- Share
In Stock: 171
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.75V
- Voltage - Input (Max):17V
- Voltage - Output (Min/Fixed):2.5V
- Voltage - Output (Max):12V
- Current - Output:5A
- Frequency - Switching:750kHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package:8-SO-EP
