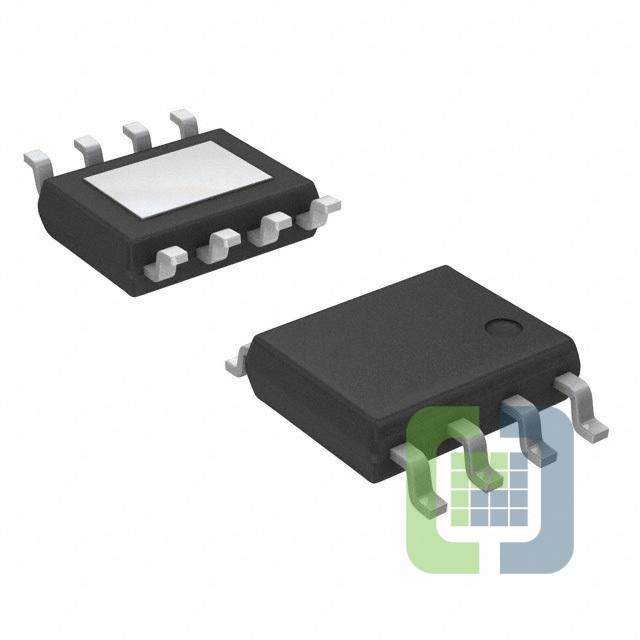

AP3503MPTR-G1
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJUSTABLE 3A 8PSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet AP3503MPTR-G1 Datasheet
-
ECAD Model
- Share
In Stock: 186
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.5V
- Voltage - Input (Max):18V
- Voltage - Output (Min/Fixed):0.925V
- Voltage - Output (Max):16.2V
- Current - Output:3A
- Frequency - Switching:340kHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package:8-PSOP
