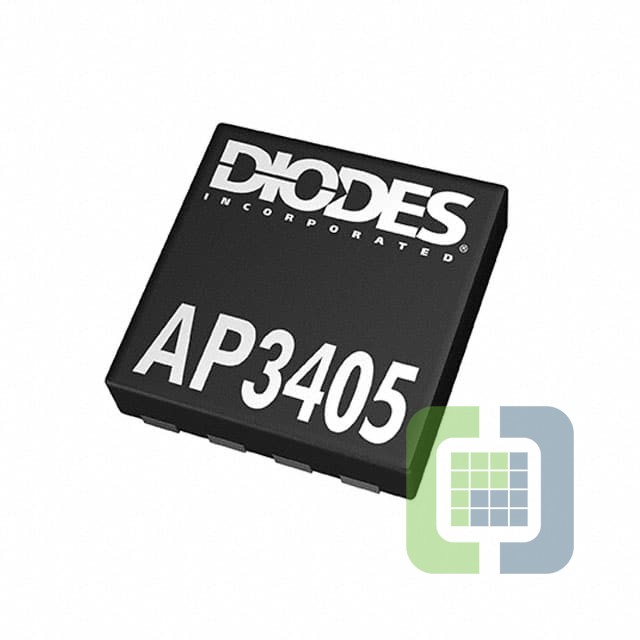

AP3405SHE-7
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ 600MA UDFN2020-8
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet AP3405SHE-7 Datasheet
-
ECAD Model
- Share
In Stock: 24,187
Can ship immediately
Pricing:
- 1$0.75
- 3,000$0.33
- 6,000$0.31
- 15,000$0.3
- 30,000$0.29
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):2.3V
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):0.7V
- Voltage - Output (Max):5.5V
- Current - Output:600mA
- Frequency - Switching:2MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-UFDFN Exposed Pad
- Supplier Device Package:U-DFN2020-8 (Type E)
