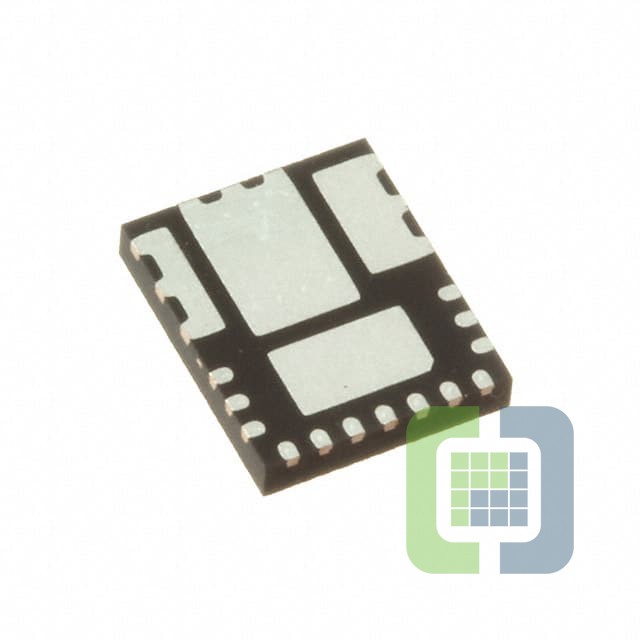

XR76120ELTR-F
MaxLinear
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJUSTABLE 20A 16QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet XR76120ELTR-F Datasheet
-
ECAD Model
- Share
In Stock: 192
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Power Blox™
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.5V
- Voltage - Input (Max):22V
- Voltage - Output (Min/Fixed):0.6V
- Voltage - Output (Max):22V
- Current - Output:20A
- Frequency - Switching:200kHz ~ 1MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:16-PowerVQFN
- Supplier Device Package:16-QFN (5x6)
