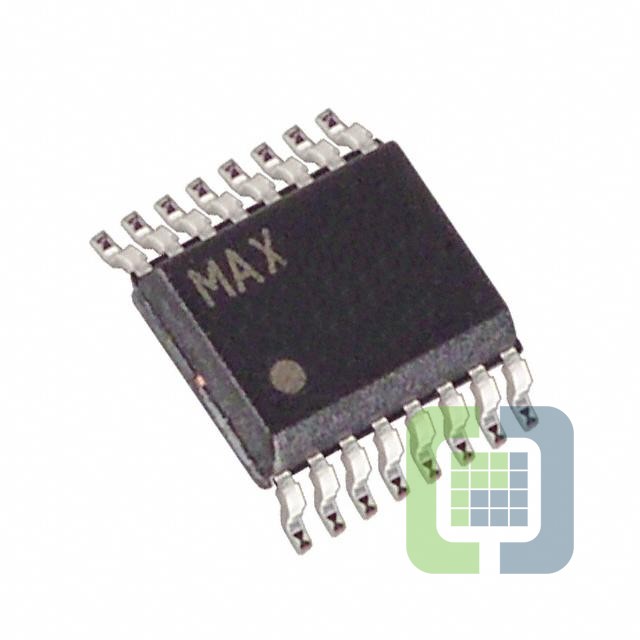

MAX8505EEE+TG38

Technical Details

• Series:-
• Package:Tube
• Part Status:Obsolete
• Function:Step-Down
• Output Configuration:Positive
• Topology:Buck
• Output Type:Adjustable
• Number of Outputs:1
• Voltage - Input (Min):2.6V
• Voltage - Input (Max):5.5V

• Voltage - Output (Min/Fixed):0.8V
• Voltage - Output (Max):4.675V
• Current - Output:3A
• Frequency - Switching:500kHz, 1MHz
• Synchronous Rectifier:Yes
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount
• Package / Case:16-SSOP (0.154", 3.90mm Width)
• Supplier Device Package:16-QSOP
