MAX20039BATPX/VY+

Technical Details

• Series:Automotive, AEC-Q100
• Package:Tray
• Part Status:Obsolete
• Function:Step-Up/Step-Down
• Output Configuration:Positive
• Topology:Buck-Boost
• Output Type:Programmable (Fixed)
• Number of Outputs:1
• Voltage - Input (Min):2V
• Voltage - Input (Max):40V

• Voltage - Output (Min/Fixed):4V (5V)
• Voltage - Output (Max):15V
• Current - Output:600mA
• Frequency - Switching:200kHz ~ 2.2MHz
• Synchronous Rectifier:Yes
• Operating Temperature:-40°C ~ 125°C
• Mounting Type:Surface Mount, Wettable Flank

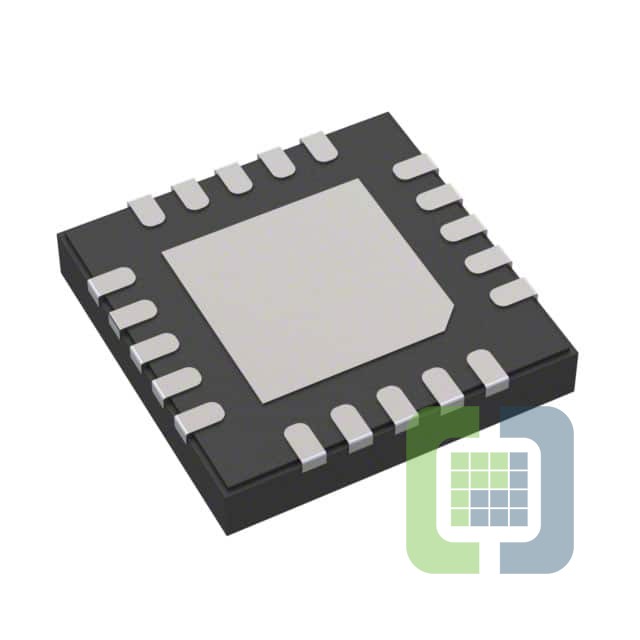

• Package / Case:20-WFQFN Exposed Pad
• Supplier Device Package:20-SWTQFN (4x4)
