In Stock: 4,172

Can ship immediately

Pricing:
  • 1$0.64
  • 4,000$0.28829

Quote It

Technical Details

  • Series:HEXFET®
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):30 V
  • Current - Continuous Drain (Id) @ 25°C:21A (Ta), 82A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
  • Rds On (Max) @ Id, Vgs:5mOhm @ 20A, 10V
  • Vgs(th) (Max) @ Id:2.35V @ 50µA



  • Gate Charge (Qg) (Max) @ Vgs:32 nC @ 10 V
  • Vgs (Max):±20V
  • Input Capacitance (Ciss) (Max) @ Vds:2487 pF @ 10 V
  • FET Feature:-
  • Power Dissipation (Max):3.6W (Ta), 54W (Tc)
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Supplier Device Package:PQFN (5x6)
  • Package / Case:8-PowerTDFN

Related Products


NTMS7N03R2G

MOSFET N-CH 30V 4.8A 8SOIC

NTMS7N03R2G Datasheet
  • 1: $0.64000
  • 2500: $0.33016
  • 5000: $0.30740

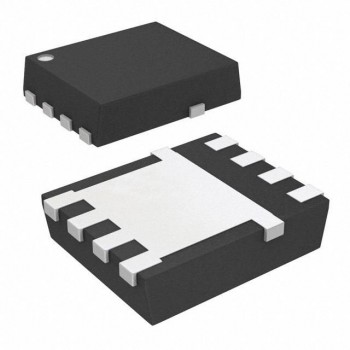

CSD16408Q5
